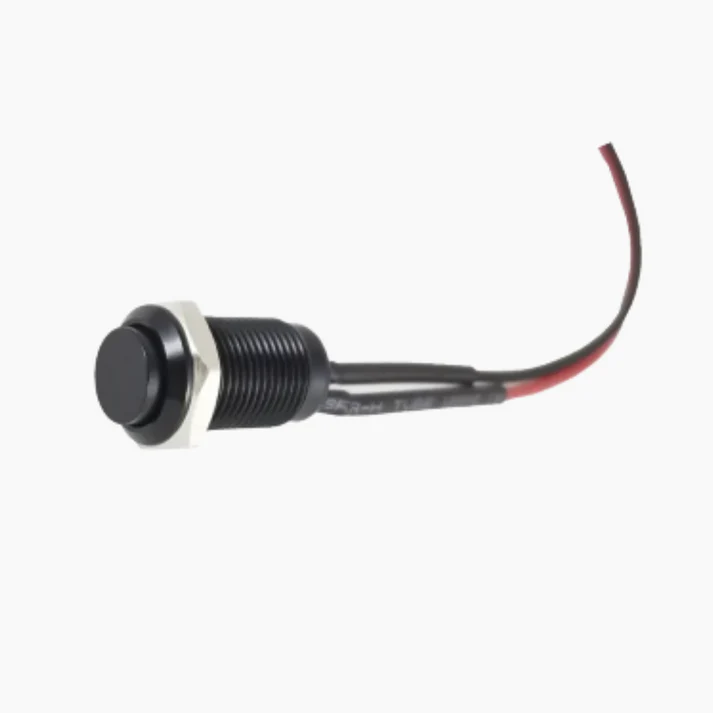

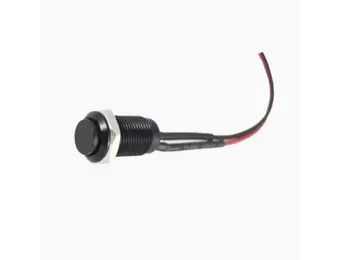

The IDO Super M 10mm kill switch is perfect for the player who doesn't want to make a major modification to their guitar. This switch is the perfect size to replace a standard 3/8" potentiometer with NO DRILLING. If you have a smaller potentiometer on an Asian import guitar, only minimal modification to the hole is required as Asian potentiometers are typically 9mm.
Simple wiring:
The red wire goes to the output jack's hot terminal, and the black wire goes to ground, and you're done!
Specs:
Type: Momentary Push Button Switch
Operation Type: Normally Open
Housing Material: Plated Brass
Mounting hole Size: 10mm
Mounting Panel Thickness: 1mm-6mm
Operation Pressure: about 5n
Operation Stroke: 2.0 mm
Contact Resistance: 50 mOhm
Mechanical Life: 500,000 cycles
